100 Power Package Engine Performance Kit
23,062.00
Tax excluded
- Made in the USA

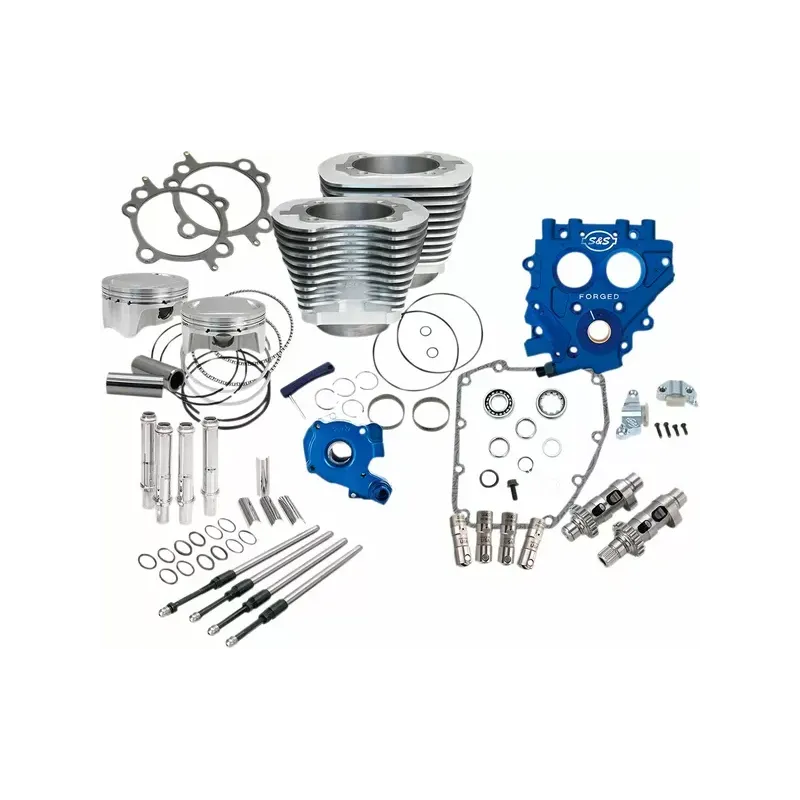

- S&.S 4.000' Big-Bore Cylinders, Piston Kits, S&.S 585 Easy Start® Cams, S&.S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
- S&.S Cylinder
- 2x S&.S 4.000' bore cylinders
- Low friction ductile cast iron liner
- Bolt in
- No maching, balancing, or splitting the crankcase
- Can be used with stock heads
- Increase displacement from 88 ci to 100 ci
- Piston Kit
- 2x 4.000' pistons for front and rear
- 2x 0.927' piston pins
- 4x Piston pin clips with installation tool
- 2x Ring packs which includes the top, second, oil rail and expander rings
- Provides 10.5:1 compression ratio
- S&.S 585 Easy Start® Cam Specifications
- Intake: Open 20° / Close 45° / Duration at 0.053' 245° / Valve Lift 0.585'
- Exhaust: Open 60° / Close 20° / Duration at 0.053' 260° / Valve Lift 0.585'
- S&.S Quickee Pushrods
- Adjustable with chrome tubes
- TC3 Cam Support Plate and TC3 Oil Pump
- Machined from aluminum forgings
- Ensures consistent oil pressure and engine longevity
- Precision Hydraulic Tappets
- Close tolerances for low leak down rates
- Reduced valve train noise from start to shut down
- Not for '06 Dyna.
- Not compatible with S&.S 79 cc Super Stock® heads.
- Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
- '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
09040025
9 Items
Data sheet
- Vendor Part Number
- 330-0662
- Compression Ratio
- 10.5
- Brand
- S&S CYCLE
- Color/Finish
- Silver
- Model
- Performance Kit
- Product Name
- Power Package
- Units
- Kit
- Type
- Engine
- Features
- Chrome Pushrod Tubes
- Style
- 585CE
- Displacement
- 100
- Bore Size
- 4.000
- Cam Drive Type
- Chain
