D2 LCD Multifunction Meter
1,286.00
Tax excluded

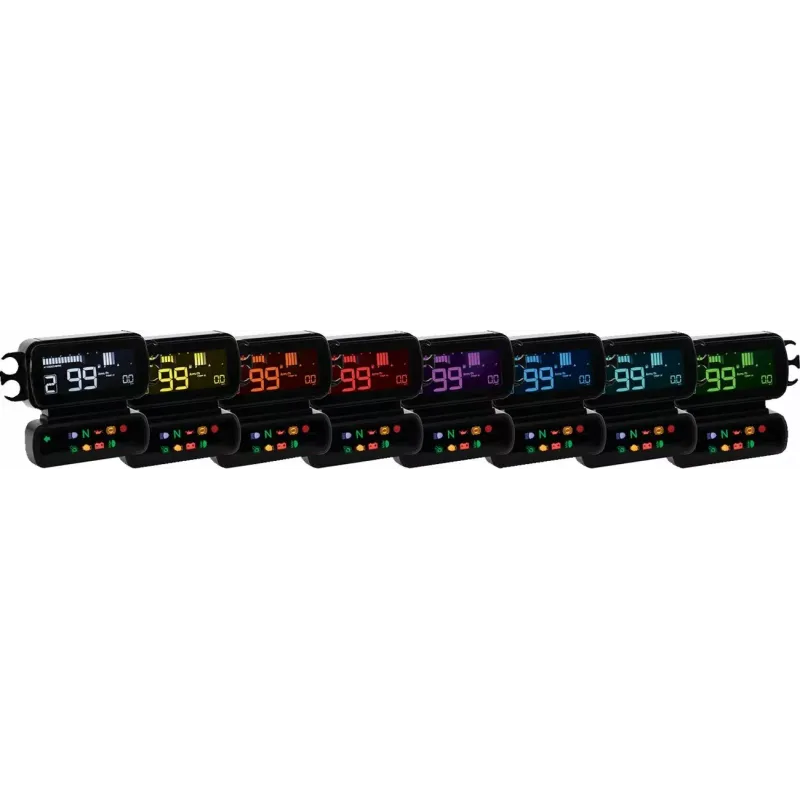

- High quality plug &. play meter that is equipped with an 8-color changeable LCD display

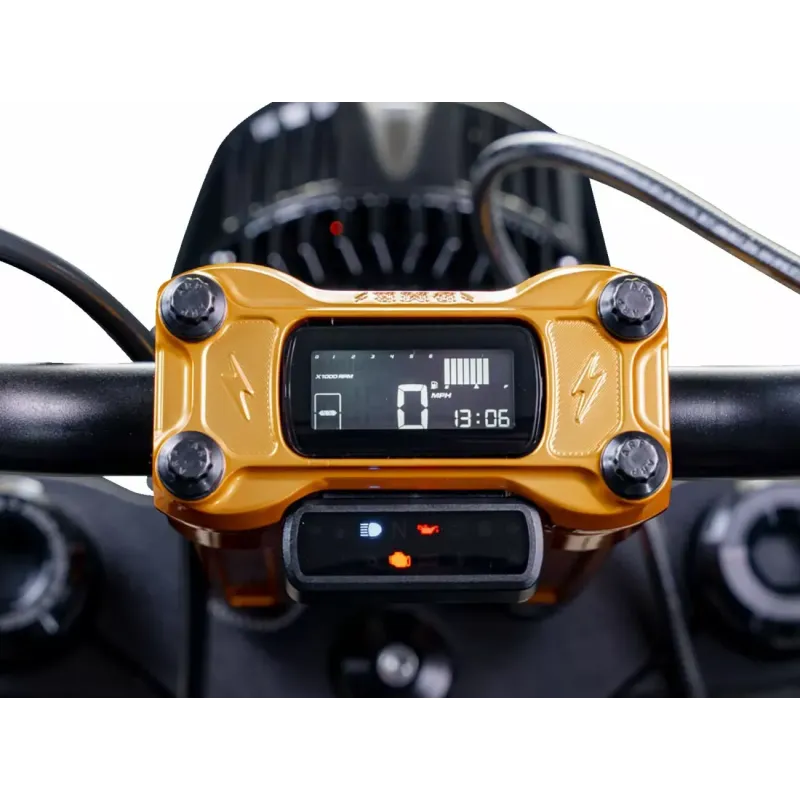

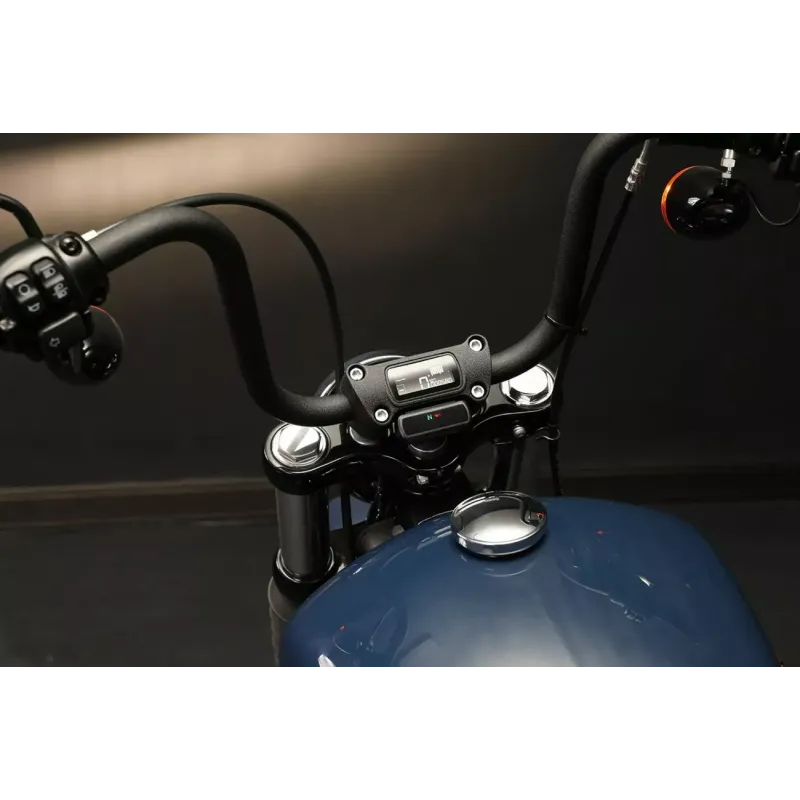

- Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)

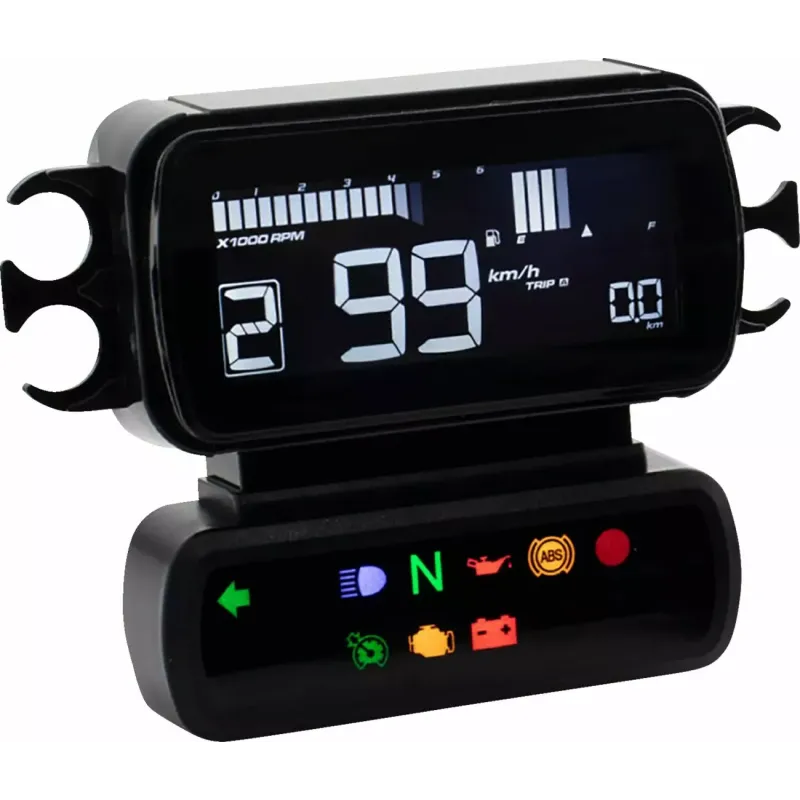

- Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
- Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
- Plugs directly into the stock harness and works directly with CANBUS system
- Display range: 0-124 mph
- Effective temperature range: -4°F-185°F (-20°C-85°C)
- 12VDC battery voltage
- Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
- XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
- Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)
22100660
5 Items
Data sheet
- Vendor Part Number
- BA080010
- Brand
- KOSO NORTH AMERICA
- Model
- D2
- Product Name
- Gauge
- Units
- Kit
- Type
- Multi-Function Speedometer
- Depth
- 66 mm (2-5/8)
- Width
- 27 mm (1-1/16)
- Length
- 88 mm (3-7/16)
- Housing Color
- Black
- Calibration
- 0 kph - 199 kph (0 mph - 124 mph)
- Calibration Imperial
- 0 mph - 124 mph
- Calibration Metric
- 0 kph - 199 kph
- Face Color
- Black
