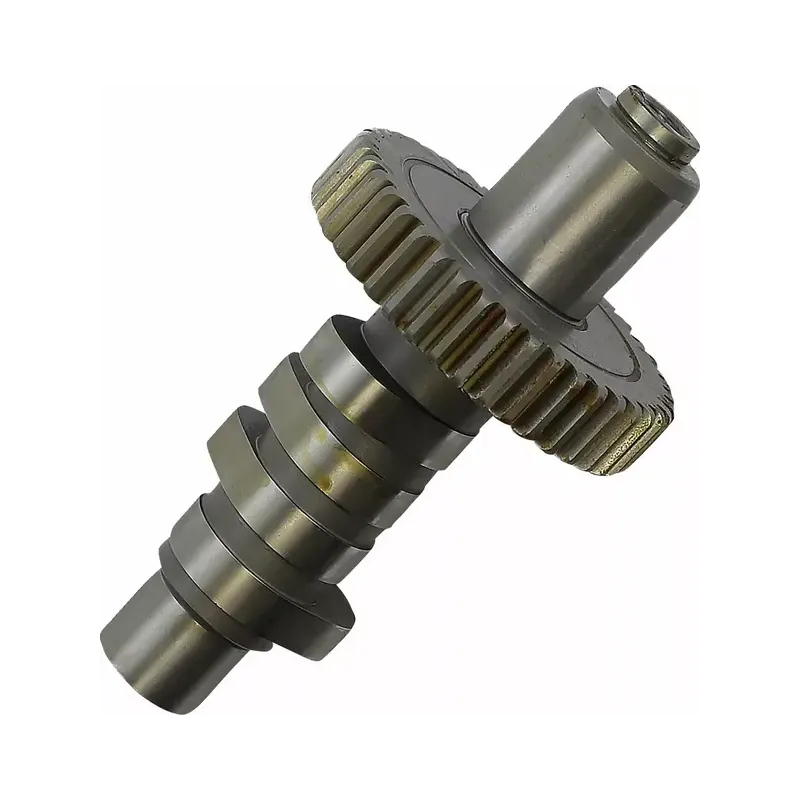

Cam for Big Twin
1,507.00
Tax excluded
- More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
- Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
- Made in the USA
- Must check coil bind, valve to valve clearance, and valve to piston clearance.
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
DS199446
4 Items
Data sheet
- Vendor Part Number
- 291138
- Exhaust Lift
- 0.500
- Exhaust Lift at TDC
- 0.182
- Intake Lift
- 0.495
- Intake Lift at TDC
- 0.190
- Brand
- ANDREWS
- Product Name
- Cam
- Units
- Each
- Type
- Gear
- Application
- Exhaust. Intake
- Grind
- EV38
- Exhaust Close
- 20°
- Exhaust Open
- 52°
- Intake Close
- 37°
- Intake Open
- 21°
- Exhaust Duration
- 252°
- Intake Duration
- 238°
