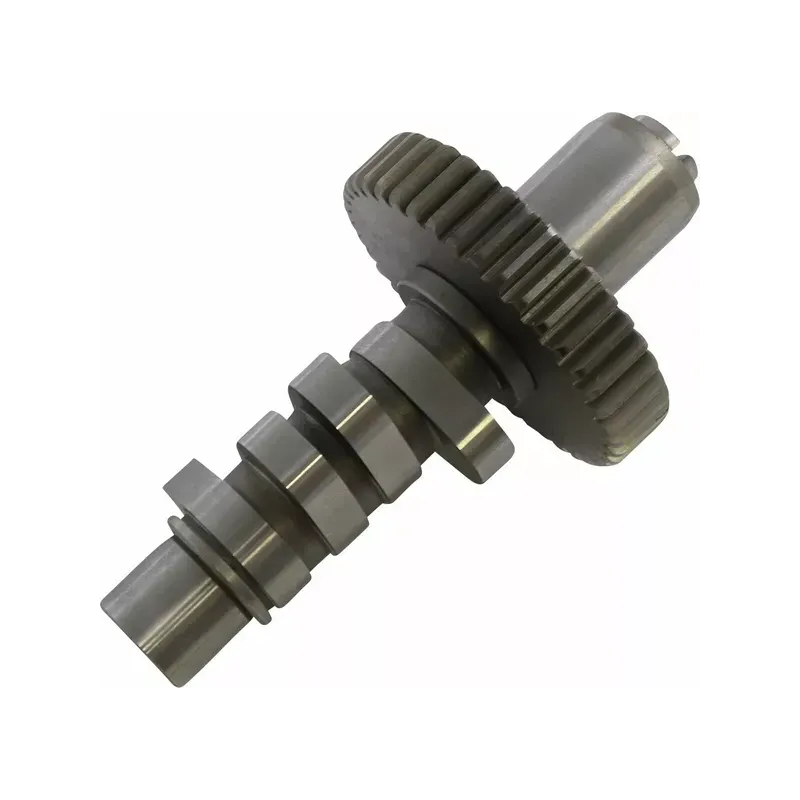

514 Camshaft
1,496.00
Tax excluded
- S&.S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&.S can produce
- For 84' to 93' motors, not more than 9:1
- Best response occurs in the mid range from 2500 to 5000 rpm
- Recommend high-performance hydraulic or solid lifters
- Made in the USA
- Spring spacing is required
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
DS199188
1 Item
Data sheet
- Vendor Part Number
- 33-5052
- Exhaust Lift
- 0.540 Panhead. 0.514 Shovelhead
- Exhaust Lift at TDC
- 0.177 Panhead. 0.169 Shovelhead
- Intake Lift
- 0.540 Panhead. 0.514 Shovelhead
- Intake Lift at TDC
- 0.177 Panhead. 0.169 Shovelhead
- Brand
- S&S CYCLE
- Product Name
- Cam
- Units
- Each
- Application
- Exhaust. Intake
- Grind
- 514 Series
- Exhaust Close
- 23°
- Exhaust Open
- 43°
- Intake Close
- 43°
- Intake Open
- 23°
- Exhaust Duration
- 246°
- Intake Duration
- 246°
