High Load Beehive® Valve Springs
2,406.00
Tax excluded
- Made from premium stress-relieved conical ovate wire with nitrided surface heat treatment, shot-peened surface enhancements and Nano Peen™ polish
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the highest demands of performance engines with high-lift, steep-ramped camshafts
- Allows up to 0.750' lift cams. no rocker box clearing required
- Features extremely high level of fatigue life
- Dyno proven and track tested

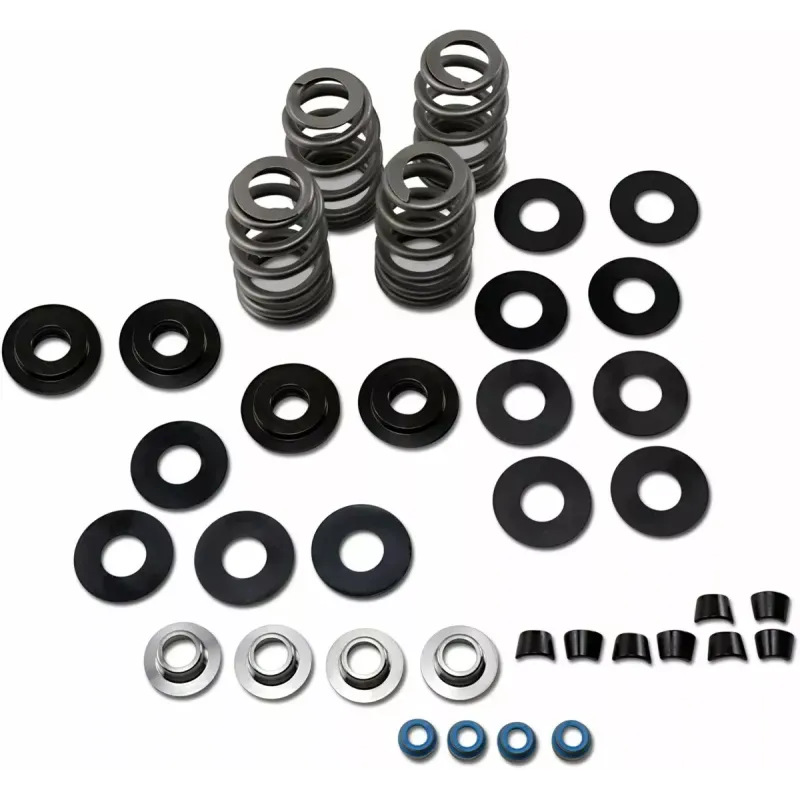

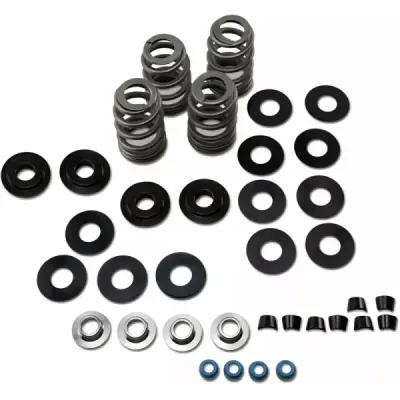

- Kit includes High-Load BeeHive® valve springs, lightweight 10° Titanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Made in the USA
- Seat lb/installed height:
- 170 lb at 1.935' (0.720' lift)
- 185 lb at 1.900' (0.685' lift)
- 200 lb at 1.845' (0.630' lift)
- 208 lb at 1.819' (0.604' lift)
- 215 lb at 1.800' (0.585' lift)
- 217 lb at 1.789' (0.574' lift)
- 415 lb at 1.215' open height
- Coil bind at 1.125'
- Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
- Feuling® BeeHive® valve spring kit is direct replacement with no machining or rocker box clearance required. Up to .574' lift for '84-'04 Big Twin and '86-'03 XL and up to .700' lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal-to-retainer clearance.
09260853
4 Items
Data sheet
- Vendor Part Number
- 1200
- Brand
- FEULING PARTS
- Model
- High-Load Beehive
- Product Name
- Spring Kit
- Units
- Kit
- Material
- Steel
- Type
- Valve
- Application
- Exhaust. Intake
- Spring Lift
- 0.750
- Spring Lift Imperial
- 0.750
- Collar Material
- Titanium
- Stem Diameter
- 0.3125
- Stem Diameter Imperial
- 0.3125
