Fisa tehnica

Vendor Part Number

310-1012B

Exhaust Lift

0.475

Exhaust Lift at TDC

0.208 Front. 0.170 Rear

Intake Lift

0.475

Intake Lift at TDC

0.107 Front. 0.093 Rear

Marcă

S&S CYCLE

Model

475 HP

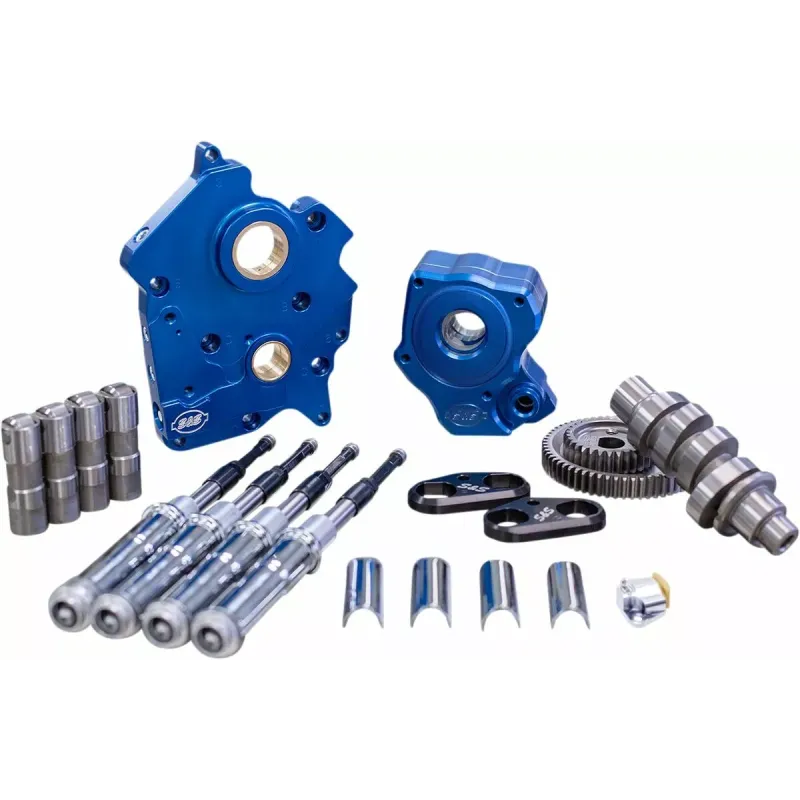

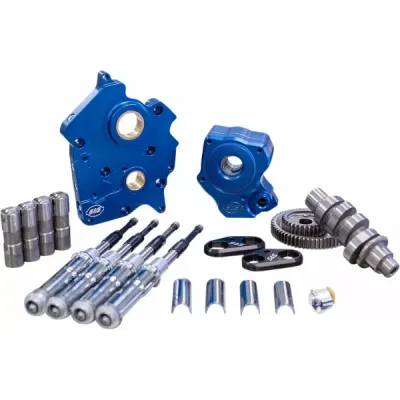

Product Name

Camchest Kit

Units

Kit

Type

Chain

Application

Oil Cooled

Features

Gloss Black Pushrod Tubes

Grind

475C

Exhaust Close

28.5° Front. 20.2° Rear

Exhaust Lobe Centerline

103.5° Front. 106.0° Rear

Exhaust Open

55.5° Front. 52.2° Rear

Intake Close

27.2° Front. 31.2° Rear

Intake Lobe Centerline

100.5° Front. 104.5° Rear

Intake Open

6.2° Front. 2.2° Rear

Exhaust Duration

263.9° Front. 252.5° Rear

Intake Duration

213.5° Front. 213.5° Rear
